Generate Thematic Maps from Heliophysics Event Knowledgebase

The below script will allow you to generate thematic maps from the valuable Heliophysics Event Knowledgebase (HEK). I have written it to take a SUVI thematic map as input and output only Spatial Possibilistic Clustering Algorithm (SPoCA) coronal hole and bright region patches in HEK but would be willing to help assist others to modify the script as needed.

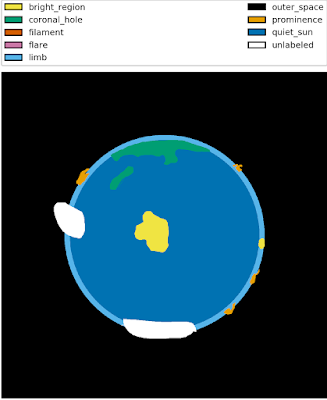

Expert labeled map

SPoCA map from HEK

The script can be found below and bundled with smachy, my solar image segmentation toolkit.

	"""
	Given a thematic map from SUVI this script queries HEK and creates a similar SPoCA thematic map with only
	coronal holes and active regions.
	"""
	from datetime import timedelta
	import numpy as np
	import argparse
	import astropy.units as u
	from astropy.coordinates import SkyCoord
	from astropy.io import fits
	import sunpy.map
	from sunpy.net import hek
	from sunpy.time import parse_time
	from skimage.draw import polygon
	def get_args():
	""" process the script arguments """
	ap = argparse.ArgumentParser()
	ap.add_argument("image", help="suvi thematic map to fetch hek data for")
	ap.add_argument("-v", "--verbose", action="store_true",
	help="prints detailed status information")
	args = vars(ap.parse_args())
	return args
	def query_hek(query_time, delta=timedelta(minutes=5)):
	""" query hek client for features around the time of the image """
	hek_client = hek.HEKClient()
	start_time = query_time - delta
	end_time = query_time + delta
	responses = hek_client.search(hek.attrs.Time(start_time, end_time))
	return responses
	def generate_pixels(response, image_map):
	""" determines pixels for coronal hole feature """
	p1 = response["hpc_boundcc"][9:-2]
	p2 = p1.split(',')
	p3 = [v.split(" ") for v in p2]
	coords = SkyCoord(
	[(float(v[0]), float(v[1])) * u.arcsec for v in p3],
	frame=image_map.coordinate_frame)
	xs, ys = image_map.world_to_pixel(coords)
	xs, ys = xs.value, ys.value
	xx, yy = polygon(xs, ys)
	return yy, xx
	if __name__ == "__main__":
	# process the arguments
	args = get_args()
	# open the suvi thematic map
	with fits.open(args['image']) as hdu:
	header = hdu[0].header
	labels = hdu[1].data
	image_map = sunpy.map.Map(args['image'])
	spoca_map = np.zeros_like(image_map.data).astype(np.uint8)
	# query hek for that time
	query_time = parse_time(header['date-beg'])
	responses = query_hek(query_time)
	# separate the coronal holes and active regions from SPoCA for drawing
	coronal_holes = [r for r in responses if r['event_type'] == 'CH' and r['frm_name'] == 'SPoCA']
	active_regions = [r for r in responses if r['event_type'] == 'AR' and r['frm_name'] == 'SPoCA']
	# draw the coronal holes
	for ch in coronal_holes:
	xx, yy = generate_pixels(ch, image_map)
	ch_index = [i for i, label in labels if label == 'coronal_hole'][0]
	spoca_map[xx, yy] = ch_index
	# draw the active regions
	for ar in active_regions:
	xx, yy = generate_pixels(ar, image_map)
	br_index = [i for i, label in labels if label == 'bright_region'][0]
	spoca_map[xx, yy] = br_index
	# save to a file
	fits.writeto(args['image'].split(".fits")[0] + "-hek.fits",
	spoca_map,
	header,
	overwrite=True)
